Lecture 12: Dirichlet Process

Chun-Hao Yang

Nonparametric estimation of distribution

Let \(X_1, \ldots, X_n \iid F\) be a random sample from a distribution \(F\).
We want to estimate \(F\) without posing any parametric assumption.
We focus on the two cases:
1. \(F\) is a continuous distribution and we want to estimate its cdf
2. \(F\) is a continuous distribution and we want to estimate its pdf
A Bayesian approach is to view \(F\) as a random distribution and put a prior on it.

Random distribution

A random distribution function is just a random function with additional constraints:
1. \(\lim_{x \to -\infty} F(x) = 0\)
2. \(\lim_{x \to \infty} F(x) = 1\)
3. \(F\) is nondecreasing
4. \(F\) is right-continuous
Enforcing these constraints on a Gaussian process is not easy.
Therefore, we need another process that can generate random distribution functions.

Empirical distribution

Based on the observations \(X_1, \ldots, X_n\), the empirical cdf (ecdf) is \[ \hat{F}_n(x) = \frac{1}{n} \sum_{i=1}^n I(X_i \leq x). \]
The empirical cdf is always a discrete distribution on \(\{X_1, \ldots, X_n\}\).
It is the simplest nonparametric estimator of \(F\).
The Glivenko-Cantelli theorem states that \(\hat{F}_n \to F\) almost surely (in the sup norm), i.e., \(\sup_x \| \hat{F}_n(x) - F(x)\| \cas 0\).

Example

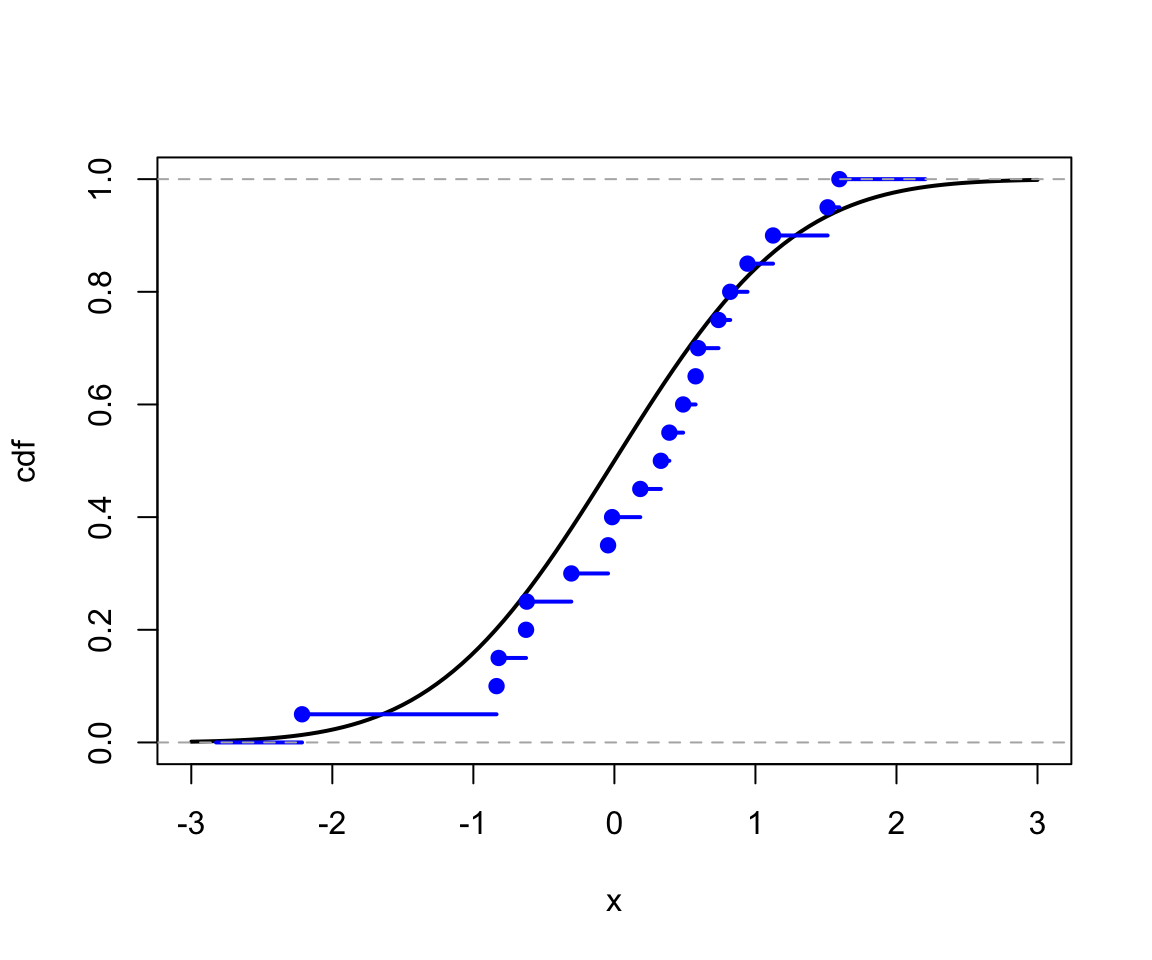

The ecdf can be easily computed in R:

set.seed(1); x <- rnorm(20)
curve(pnorm(x), -3, 3, lwd = 2, ylab = "cdf")
lines(ecdf(x), col = "blue", lwd = 2)

Dirichlet Process

An obvious problem with the ecdf is that it is discrete.
Therefore we can not directly differentiate the ecdf to get the pdf.
The most commonly used prior for random distributions is the Dirichlet process.
It is the infinite-dimensional generalization of the Dirichlet distribution, just like the Gaussian process is the infinite-dimensional generalization of the multivariate normal distribution.

Dirichlet distribution

Beta distribution \(p \sim \text{Beta}(\alpha, \beta)\):
\[ f(p \mid \alpha, \beta) = \frac{\Gamma(\alpha + \beta)}{\Gamma(\alpha)\Gamma(\beta)}p^{\alpha-1}(1-p)^{\beta-1}, \quad p \in [0,1]. \]
Alternative parameterization: \(\alpha^{\prime} = \alpha + \beta\), \(\nu = \frac{\alpha}{\alpha + \beta} = \E(p)\).
Dirichlet distribution \((p_1, p_2, \ldots, p_k) \sim \text{Dir}(\alpha_1, \ldots, \alpha_k)\): \[ f(p_1, \ldots, p_k \mid \alpha_1, \ldots, \alpha_k) = \frac{\Gamma(\alpha_1 + \cdots + \alpha_k)}{\Gamma(\alpha_1)\cdots\Gamma(\alpha_k)} p_1^{\alpha_1-1}\cdots p_k^{\alpha_k-1} \] where \(p_i \in [0,1]\) and \(\sum_{i=1}^k p_i = 1\).
Alternative: \(\alpha = \sum_{i=1}^k\alpha_i\) and \(\nu = \left(\alpha_1/\alpha, \ldots \alpha_k/\alpha\right) = \E[(p_1, \ldots, p_k)]\).

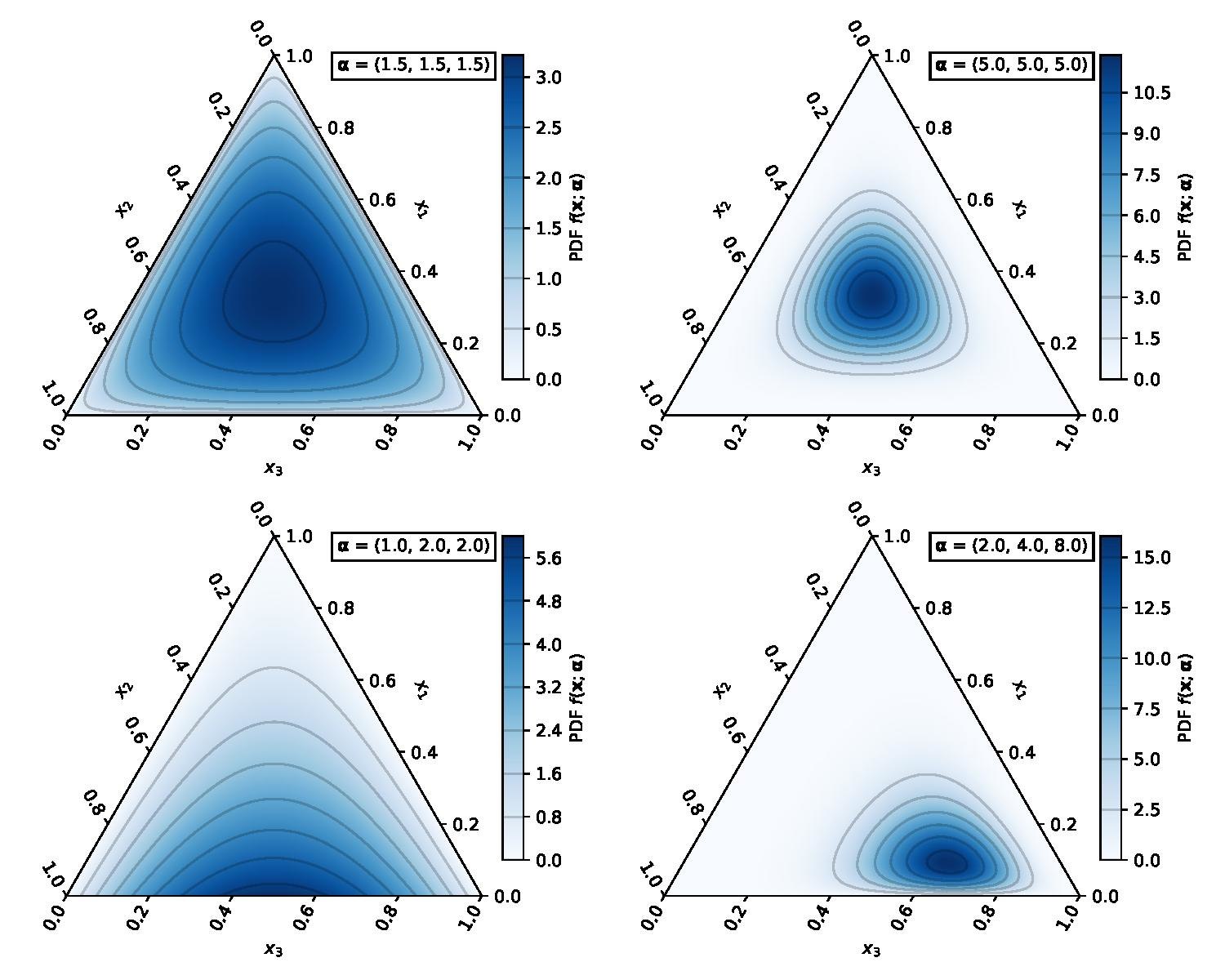

The domain of a Dirichlet distribution is a \(k-1\) dimensional simplex \(\triangle^{k} = \{(p_1, \ldots, p_k): \sum p_i = 1, p_i \geq 0\}\).

Dirichlet distribution

Conjugacy between Multinomial and Dirichlet

As the binomial and Beta are conjugate, we have the same conjugacy between multinomial and Dirichlet.
Let \(X = (X_1, \ldots, X_k) \sim \text{Multinomial}(n, p_1, \ldots, p_k)\) and \(p = (p_1, \ldots, p_k) \sim \text{Dir}(\alpha_1, \ldots, \alpha_k)\).
Then the posterior distribution of \(p\) given \(X\) is \[ p \mid X \sim \text{Dir}(\alpha_1 + X_1, \ldots, \alpha_k + X_k). \]

Definition

A ``random distribution’’ \(F\) is said to follow a Dirichlet process, denoted by \[ F \sim \mc{DP}(\alpha, F_0), \] if for any measurable partition \(B_1, \ldots, B_n\) of the sample space of \(F_0\), the random vector \((F(B_1), \ldots, F(B_n))\) has a Dirichlet distribution, i.e., \[ (F(B_1), \ldots, F(B_n)) \sim \text{Dir}(\alpha F_0(B_1), \ldots, \alpha F_0(B_n)). \]

The parameter \(\alpha > 0\) is called the concentration parameter: large \(\alpha\) means \(F\) is more concentrated around \(F_0\).
The parameter \(F_0\) is called the mean distribution.

Expectation and variance

Let \(F\) be a random cdf from a Dirichlet process \(\mc{DP}(\alpha, F_0)\).
Expectation: \(\E(F(t)) = F_0(t)\).
Variance: \(\var(F(t)) = \frac{F_0(t)(1-F_0(t))}{\alpha + 1}\).
Covariance: \(\cov(F(t), F(s)) = \frac{-F_0(t)F_0(s)}{\alpha + 1}\) for \(s \neq t\).

Simulating Dirichlet processes

The original definition of Dirichlet process is not very useful for simulation.
In order to do actual computation, we introduce two equivalent definitions of Dirichlet processes:
1. Stick-breaking construction¹
2. Pólya Urn Scheme²
These two definitions allow us to simulate Dirichlet processes easily.

Stick-breaking Construction

The stick-breaking construction is as follows:
1. Draw \(s_1, s_2, \ldots\) independently from \(F_0\).
2. Draw \(V_1, V_2, \ldots \iid \text{Beta}(1, \alpha)\).
3. Let \(w_1=V_1\) and \(w_j=V_j \prod_{i=1}^{j-1}\left(1-V_i\right)\) for \(j=2,3, \ldots\)
4. Let \(F\) be the discrete distribution that puts mass \(w_j\) at \(s_j\), that is, \(F=\sum_{j=1}^{\infty} w_j \delta_{s_j}\) where \(\delta_{s_j}\) is a point mass at \(s_j\).
The sequence \(w_1, w_2, \ldots\) is said to follow a stick-breaking process.
The distribution \(F\) is a random distribution from the Dirichlet process \(\mc{DP}(\alpha, F_0)\).

Stick-breaking Construction

DP_stick <- function(alpha = 10, F0 = rnorm, n = 1e3){
    s <- F0(n)
    V <- rbeta(n, 1, alpha)
    w <- c(V[1], rep(0, n-1))
    w[2:n] <- sapply(2:n, function(i) V[i] * prod(1 - V[1:(i-1)]))
    s_ord <- order(s)
    s <- s[s_ord]
    cum_prob <- cumsum(w[s_ord])

    return(list(x = s, cdf = cum_prob))
}

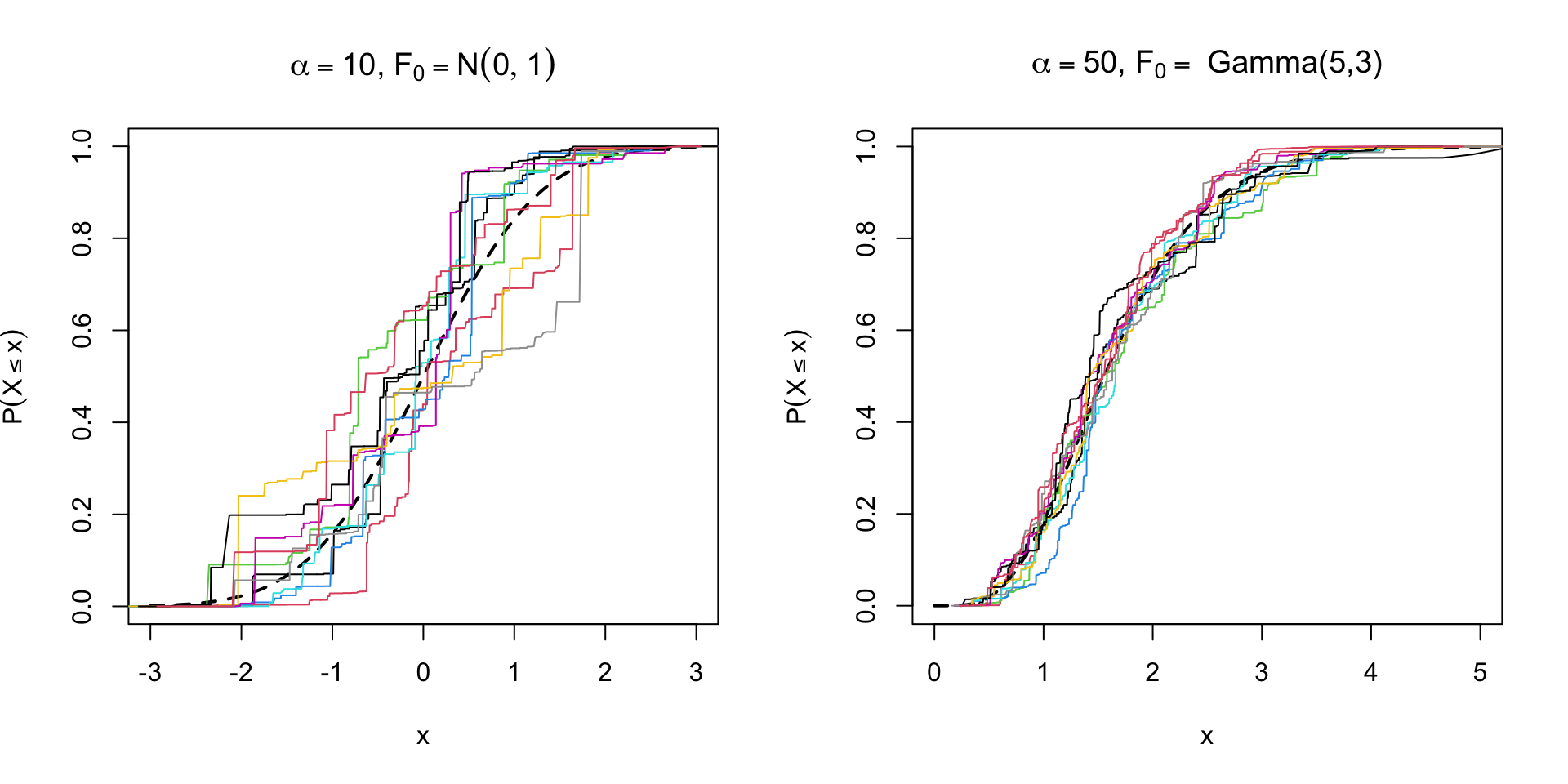

Stick-breaking Construction

Pólya Urn

Consider an urn containing balls of \(k\) different colors.
Initially, there are \(\alpha_i\) balls of color \(i\).
At each step, a ball is drawn from the urn and then put back together with another ball of the same color.
Repeat indefinitely.
Let \((p_1(n), \ldots, p_k(n))\) be the proportion of balls of each color after \(n\) steps.
Then we have
- \((p_1(n), \ldots p_k(n))\) converges to a random vector \((p_1, \ldots, p_k)\).
- \((p_1, \ldots, p_k) \sim \text{Dir}(\alpha_1, \ldots, \alpha_k)\).
- Equivalently, \((p_1(n), \ldots p_k(n)) \cd \text{Dir}(\alpha_1, \ldots, \alpha_k)\).

Pólya Urn Scheme (general)

Let \(\alpha\) be any finite measure on \(\R\).
A sequence of random variables \(\{X_1, X_2, \ldots \}\) is a Pólya Urn sequence with parameter measure \(\alpha\) if
1. \(\P(X_1 \in B) = \alpha(B)/\alpha(\R)\),
2. for every \(n\), \[ \P(X_{n+1} \in B \mid X_1, \ldots, X_n) = \frac{\alpha(B) + \sum_{i=1}^n I(X_i \in B)}{\alpha(\R) + n}. \]
Let \(F_n\) be the distribution function of \(X_{n+1}\) given \(X_1,\ldots, X_n\).
Then \(F_n \to F\) and \(F \sim \mc{DP}(\alpha(\R), F_0)\), \(F_0(B) = \alpha(B)/\alpha(\R)\).

Estimating a cdf

Suppose we have \(X_1, \ldots, X_n \iid F\) and we want to estimate \(F\).
A Bayesian approach is to put a prior on \(F\) and find the posterior distribution of \(F\), i.e., \[\begin{align*} X_1, \ldots, X_n \iid F, \quad F \sim \text{Dir}(\alpha, F_0). \end{align*}\]
The posterior of \(F\) given \(X_1,\ldots, X_n\) is \[ F \mid X_1, \ldots, X_n \sim \text{Dir}\left(\alpha + n, \frac{\alpha}{\alpha + n}F_0 + \frac{n}{\alpha + n}\hat{F}_n\right), \] where \(\hat{F}_n = \frac{1}{n}\sum_{i=1}^n \delta_{X_i}\) is the empirical cdf.
Hence the posterior mean is \[ \E[F \mid X_1, \ldots, X_n] = \frac{\alpha}{\alpha + n}F_0 + \frac{n}{\alpha + n}\hat{F}_n. \]

Derivation

Let \(B_1, \ldots, B_m\) be a finite measurable partition.
Let \(n_k=\#\left\{i: X_i \in A_k\right\}\) be the number of observed values in \(B_k\).
By the conjugacy between the Dirichlet and the multinomial distributions, we have: \[\begin{multline*} \left(F\left(B_1\right), \ldots, F\left(B_m\right)\right) \mid X_1, \ldots, X_n \sim \\ \text{Dir}\left(\alpha F_0(B_1)+n_1, \ldots, \alpha F_0(B_m)+n_m\right). \end{multline*}\]

Example

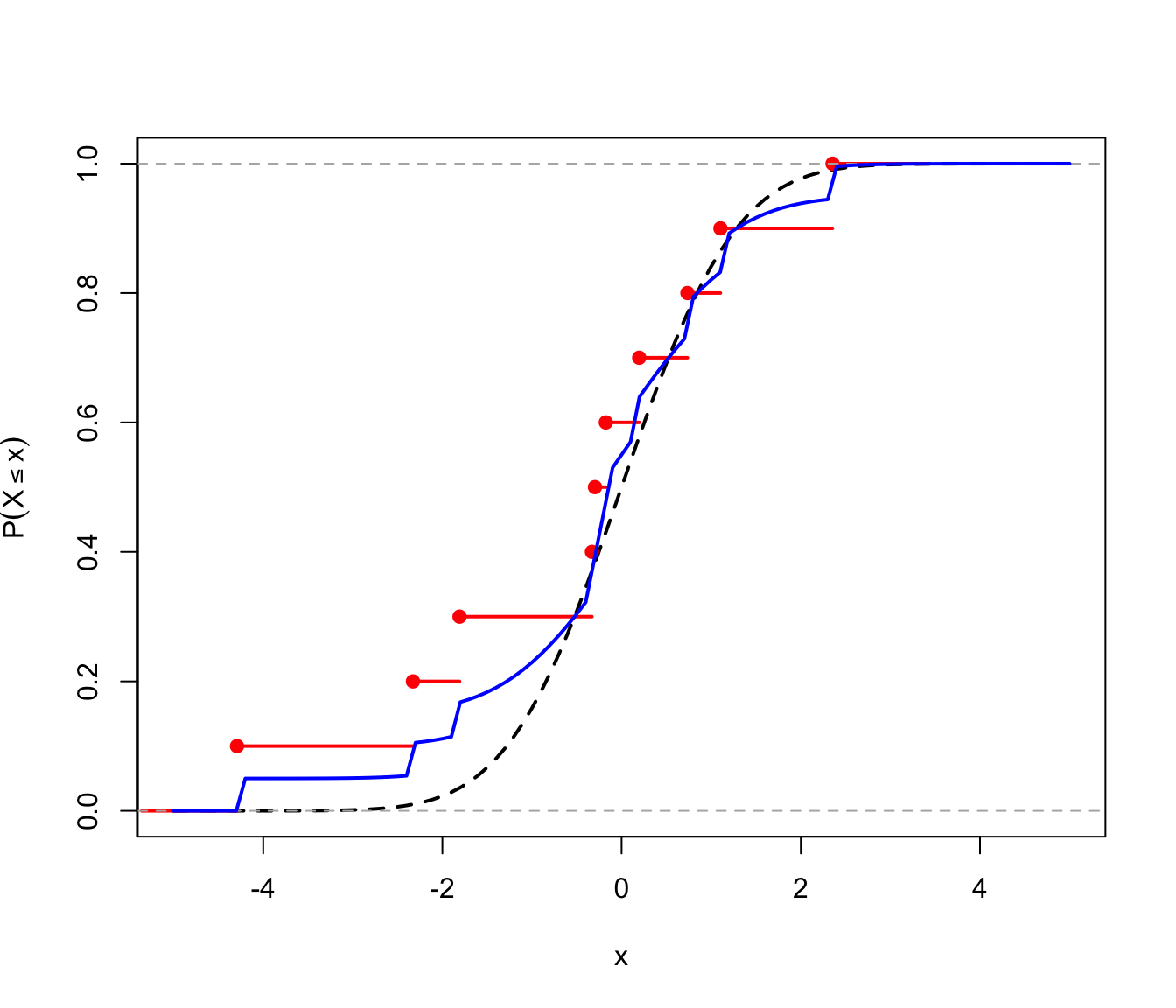

Consider \(X_1, \ldots X_n \iid F\) and \(F \sim \mc{DP}(\alpha, F_0)\) where \(\alpha = 10\) and \(F_0 = N(0,1)\).

n <- 10
set.seed(1)
x <- rcauchy(n)
alpha <- 10
F_bar <- function(z){
    n/(alpha+n)*ecdf(x)(z) + alpha/(alpha+n)*pnorm(z)
}

curve(pnorm(x), -5, 5, lty = 2, lwd = 2,
      ylab = TeX("$P(X \\leq x)$"), xlab = "x")
lines(ecdf(x), col = "red", lwd = 2)
curve(F_bar(x), add = T, col = "blue", lwd = 2)

Example

Problems with DP

There is a lack of smoothness in the posterior.
Smoothness would imply dependence between \(F(B_1)\) and \(F(B_2)\) for adjacent bins \(B_1\) and \(B_2\).
However, the DP actually induces negative correlation between \(F(B_1)\) and \(F(B_2)\) for any two disjoint sets \(B_1\) and \(B_2\), with no account for the distance between these sets.
The realization of a DP is almost surely discrete.

Density Estimation

Suppose we have \(X_1, \ldots, X_n \iid F\) with density \(f\) and we want to estimate \(f\).
The most common estimate is the kernel density estimate (KDE): \[ \hat{f}_n(x) = \frac{1}{n}\sum_{i=1}^n \frac{1}{h}K\left(\frac{x-X_i}{h}\right) \] where \(K\) is a kernel function and \(h\) is a bandwidth.
For example, the Gaussian kernel is \(K(u) = \exp(-u^2/2)\).
In R, the KDE is implemented in the function density.

Example

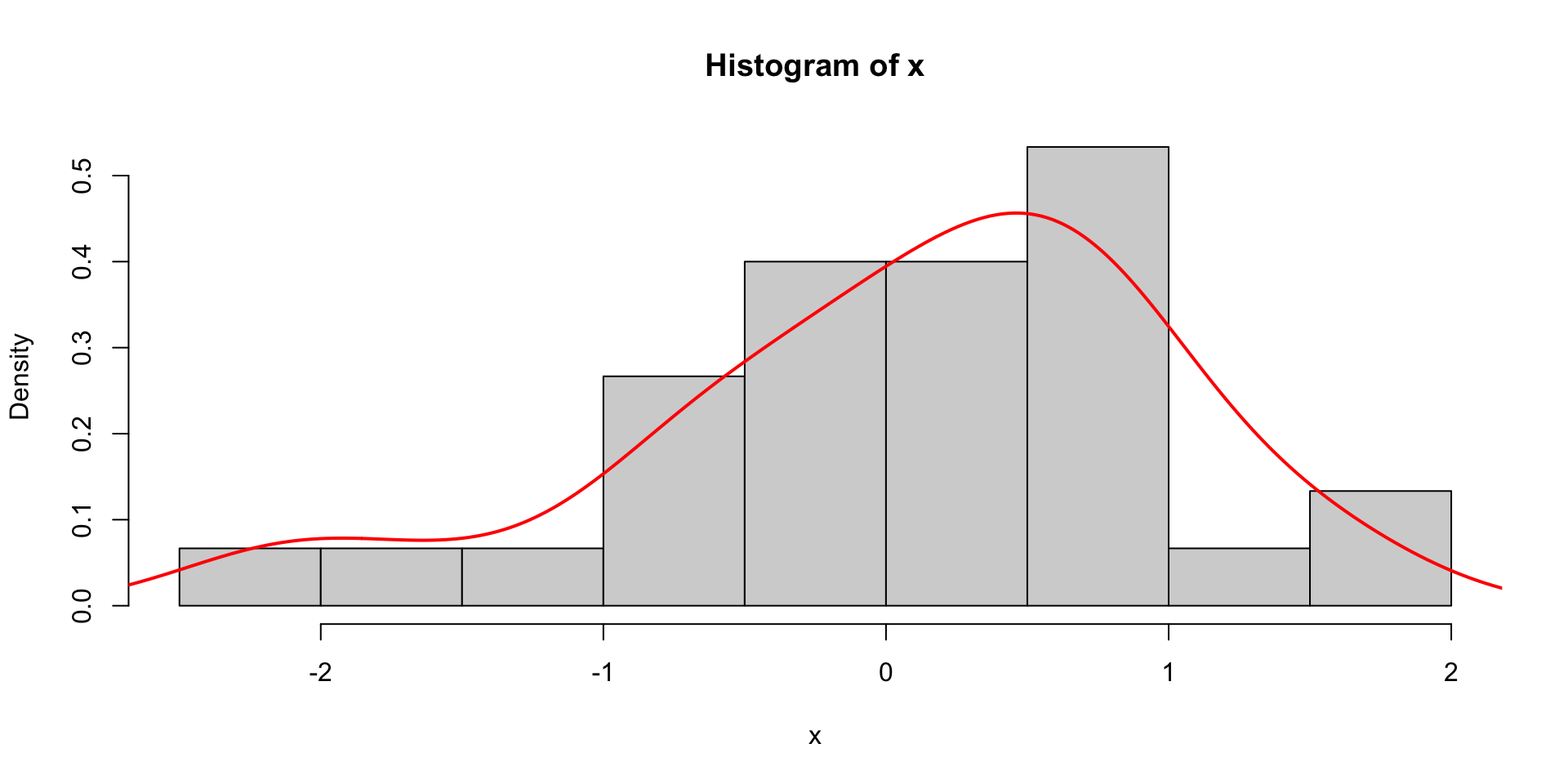

set.seed(1); x <- rnorm(30)
hist(x, freq = F, breaks = 10)
lines(density(x), col = "red", lwd = 2)

Mixture model

A related approach is to use a mixture model: \[ \hat{f}(x) = \sum_{i=1}^k w_i h(x \mid \theta_i) \] where \(h(x \mid \theta_i)\) are density functions and \(w_i\) are weights.
For example, the Gaussian mixture model (GMM) is \[ \hat{f}(x) = \sum_{i=1}^k w_i\phi(x \mid \mu_i, \sigma_i^2) \] where \(\phi(x \mid \mu_i, \sigma_i^2)\) is the density of a normal distribution with mean \(\mu_i\) and variance \(\sigma_i^2\).
In fact, a GMM can approximate any density (on \(\R\)) arbitrarily well.

Infinite mixture model

We can also consider an infinite mixture model: \[ \hat{f}(x) = \sum_{i=1}^\infty w_i h(x \mid \theta_i). \]
Dirichlet process is an example of infinite mixture models, since \(F = \sum_{i=1}^{\infty}w_i \delta_{x_i}\) from the stick-breaking construction.
However, the realization of a Dirichlet process is a mixture of Dirac distributions and therefore does not have a density.
A more general form of mixture model is \[ f(x) = \int h(x \mid \theta) dP(\theta) \] where \(P\) is a mixing distribution and \(h\) is a given kernel.

Dirichlet process mixture model

For density estimation, the Dirichlet process is not a useful prior, since it produces discrete distributions.
Alternatively, we assume the density to be estimated is \[ f(x) = \int h(x \mid \theta) dP(\theta) \] where \(P\) is unknown.
We assume a Dirichlet process prior on \(P\), \[\begin{align*} X \mid P & \sim f(x) = \int h(x \mid \theta) dP(\theta)\\ P \mid \alpha, P_0 & \sim \mc{DP}(\alpha, P_0); \end{align*}\] this is called a Dirichlet process mixture model (DPMM).

Dirichlet process mixture model

Using the stick-breaking representation, the DPMM is equivalent to \[\begin{align*} f(x)=\sum_{i=1}^{\infty} w_i h\left(x \mid \theta_i^*\right) \end{align*}\] where \(w_i\) is from the stick-breaking process and \(\theta_i^* \iid P_0\), \(i = 1,\ldots, \infty\).
Suppose we observe \(X_1, \ldots, X_n \iid f\) and we want to estimate \(f\) using DPMM.
We need to sample \(\theta_1^*, \theta_2^*, \ldots\) the posterior.
However, in this case, we no longer have the conjugacy due to the presence of \(h\).

Sampling from DPMM

When \(P_0\) and \(h\) are conjugate, sampling \(\theta^*_1,\theta^*_2, \ldots\) can be done using the Pólya Urn Scheme and Gibbs sampler.
For example, when \(h(x \mid \theta)\) is normal and \(\theta = (\mu, \sigma^2)\), \(P_0\) is normal-inverse-gamma.
When \(P_0\) and \(h\) are not conjugate, we can Metropolis-Hastings to sample \(\theta^*_1,\theta^*_2, \ldots\).
See Neal (2000) for details.

Example

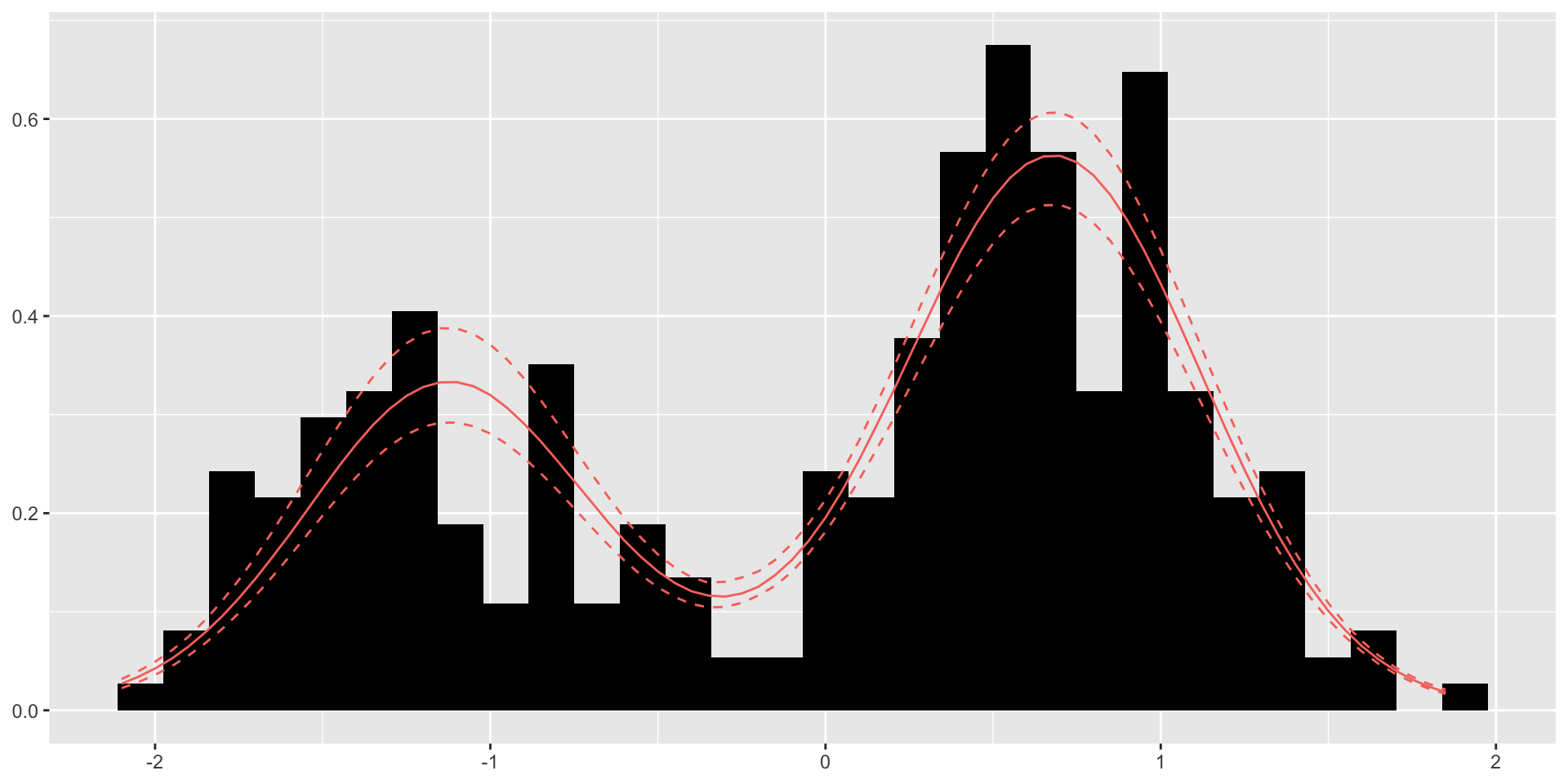

We will use the R package dirichletprocess for demonstration.

The function DirichletProcessGaussian creates a DPMM with
- \(h\) being Gaussian
- \(P_0\) being the normal-inverse-gamma distribution which is conjugate to normal.

library(dirichletprocess)
its <- 500 # Number of iterations
faithfulTransformed <- scale(faithful$waiting)
dp <- DirichletProcessGaussian(faithfulTransformed)
dp <- Fit(dp, its)
plot(dp, data_method="hist")

Example

Other applications

There are many other applications:

Nonparametric residual distributions: \[ y_i=X_i \beta+\epsilon_i, \quad \epsilon_i \sim F, \quad F \sim \mc{DP}(\alpha, F_0) \]
Nonparametric models for parameters that vary by group: \[ y_{i j}=\mu_i+\epsilon_{i j}, \quad \mu_i \sim f, \quad \epsilon_{i j} \sim g \]
Clustering Analysis

Cluster Analysis

For a DPMM, each \(X_i\) is assigned a cluster parameter \(\theta_i\), for example, \[\begin{align*} X_i & \sim N\left(y \mid \theta_i\right), \\ \theta_i & =\left\{\boldsymbol{\mu}_i, \Sigma_i\right\} \\ \theta_i & \sim G \\ G & \sim \mc{DP}\left(\alpha, G_0\right). \end{align*}\]
The collection of all unique \(\theta_i\)’s allows for a natural way of grouping the data and hence the Dirichlet process is an effective way of performing cluster analysis.
The cluster assignment is obtained through the Chinese Restaurant Process.

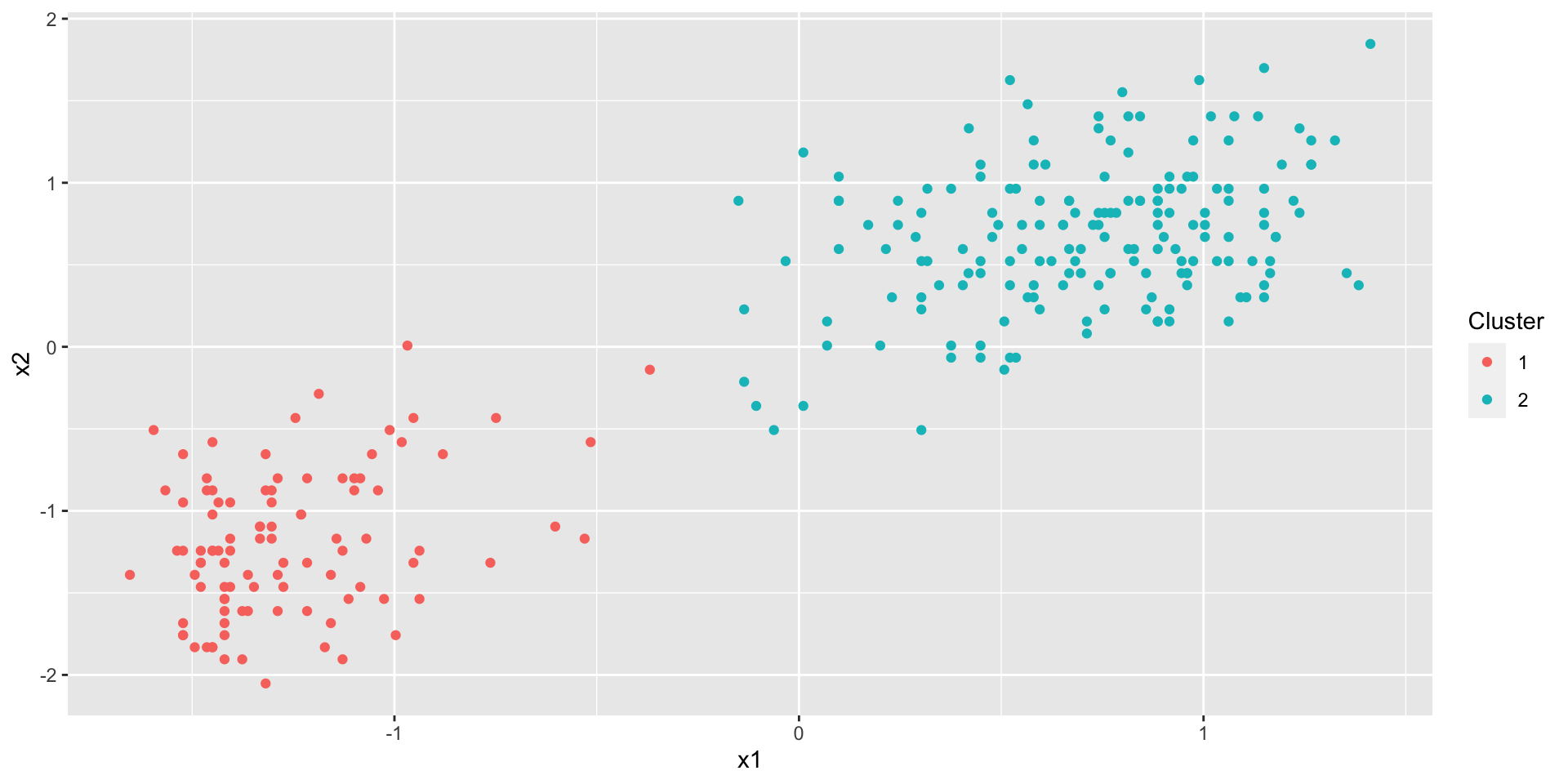

faithfulTrans <- scale(faithful)
dp <-  DirichletProcessMvnormal(faithfulTrans)
dp <- Fit(dp, 1000)
plot(dp)

Cluster Analysis

Hierarchical Dirichlet process

When the data has some hierarchical structure, we can use the hierarchical Dirichlet process (HDP) to model the data.
For example, suppose \(Y_{ij}\) is the annual income of the \(i\)th person in city \(j\).
We can use the model: \[\begin{align*} Y_{i j} & \sim F\left(\theta_{i j}\right), \\ \theta_{i j} & \sim G_j, \\ G_j & \sim \mc{DP}\left(\alpha_j, G_0\right), \\ G_0 & \sim \mc{DP}(\gamma, H), \end{align*}\]
Here \(G_0\) is the overall income distribution and \(G_j\) is the income distribution of city \(j\).
Try the DirichletProcessHierarchicalMvnormal2 function in the dirichletprocess package.

Summary of the course

In my opinion, there are four important techniques in statistics:
- Monte Carlo methods (e.g., bootstrap, MCMC, etc)
- hierarchical models (e.g., mixed effect models)
- latent variable (e.g., data augmentation, missing data, etc)
- nonparametric methods (e.g., Gaussian process, Dirichlet process)
These four techniques are not limited to Bayesian analysis.
It can be applied to any statistical problems.
However these techniques fits naturally into the Bayesian framework.
